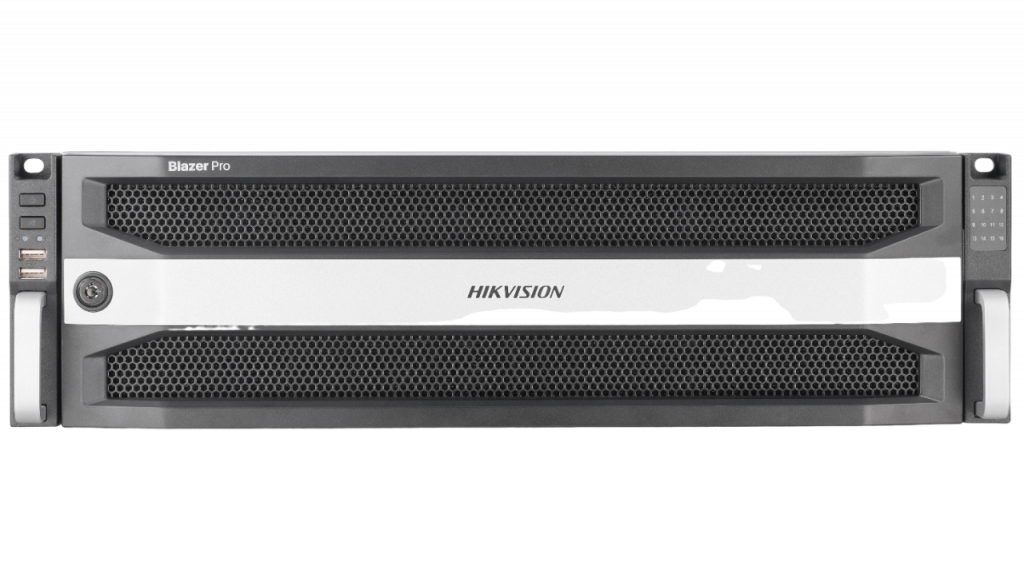

Hikvision Blazer Pro
256-channel Blazer Pro
- Blazer Pro combines VMS, server, and storage, and is delivered with a default license of 256 channels
- Operating system: embedded Linux, up to 16-ch synchronous playback
- High reliability, dual board, redundant power supply, RAID
- Easy to use: all-in-one, pre-installed OS and VMS, flat UI design
- Easy to extend: extendable storage and license
- cascadable.
- Server Board
- CPUIntel®, Xeon®, Quad-Core (64-bit) E3-1225 V5 CPU @,3.30GHz,
- Memory4 × DDR4 slots, 8GB ECC + UDIMM memory (extendable,up to 64 GB)
- Operating systemMicrosoft®, Windows 10 (pre-installed with HikCentral,V1.1),Optional:Microsoft®, Windows Server 2012 R2 (preinstalled,with HikCentral V1.1)
- System diskIndustrial-level SSD with 128 GB capacity
- HDD Slot4 × SATA interfaces, 2.5-inch HDDs are connectable
- HDD for HikCentral1 × 2.5-inch HDD of 1 TB are delivered with device,Expandable to up to four 2.5-inch HDDs
- Audio Input1, RCA (2.0 Vp-p, 1KΩ)
- Audio Output1, RCA (2.0 Vp-p, 1KΩ)
- Network Interface4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet,interfaces, independent IP address by default,
- Incoming500 Mbps
- Outgoing400 Mbps
- Default LicenseLicense of max. 256 cameras
- Maximum LicenseExpandable to License of up to 1,024 cameras
- Number of Clients (Control Client or Web Client) ConcurrentlyMaximum 100
- Number of Mobile Clients ConcurrentlyMaximum 100
- Number of Connected Encoding DevicesMaximum 256
- Number of Connected CamerasMaximum 256
- Number of Alarm InputsMaximum 256
- Number of Alarm OutputsMaximum 256
- Number of ANPR CamerasMaximum 20
- Number of Area HierarchiesMaximum 5
- Number of Cameras per AreaMaximum 64
- Number of Alarm Inputs per AreaMaximum 64
- Number of Alarm Outputs per AreaMaximum 64
- Number of MapsMaximum 1,024
- Resolution of MapMaximum 1920 × 1080
- Number of Map HierarchiesMaximum 6
- Number of Hot Regions per MapMaximum 64
- Number of Camera Hot Spots per MapMaximum 128
- Number of Alarm Input Hot Spots per MapMaximum 128
- Number of Alarm Output Hot Spots per MapMaximum 128
- Number of Labels per MapMaximum 128
- Number of Hot Regions in TotalMaximum 1,024
- Number of Camera Hot Spots in TotalMaximum 3,000
- Number of Alarm Input Hot Spots in TotalMaximum 3,000
- Number of Alarm Output Hot Spots in TotalMaximum 3,000
- Number of Labels in TotalMaximum 3,000
- Number of UsersMaximum 3,000
- Number of RolesMaximum 3,000
- Number of Alarm LogsMaximum 60,000,000
- Number of Event LogsMaximum 60,000,000
- Number of Operation LogsMaximum 5,000,000
- Number of System LogsMaximum 5,000,000
- Number of TagsMaximum 60,000,000
- Number of People Counting RecordsMaximum 5,000,000, stored for 2 years
- Number of Heat Map RecordsMaximum 250,000, stored for 2 years
- Number of License Plate Recognition RecordsMaximum 60,000,000
- Smart Wall Module on Control ClientOptional (not installed by default)
- Remote Site Management (RSM)Optional (not activated by default, based on the License) If activated maximum number of resources can be managed: 1,024 Remote Sites and 1,024 cameras
- RoseReplicatorPlus Control CenterOptional (not installed by default)
- Manageable Device TypeNVR, DVR, network camera, encoder, decoder, video wall,controller, CVR, Cloud Storage Server, Blazer Express,(version 1.4 and later, managed via RSM), Blazer Pro,without RSM (version 2.1 and later, managed via RSM),
- Language of Operating System and HikCentraBulgarian, Czech, Danish, English, French, German, Hungarian, Japanese, Polish, Portuguese, Russian,Simplified Chinese, Spanish, Thai, Traditional Chinese, and Turkish
- Storage Board
- CPUIntel®, Xeon®, E3-1225
- Network Camera Video Input256-ch
- Incoming/Outgoing Bandwidth768/768 Mbps
- HDMI Output2-ch (independent output),4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 ×,1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 ×,1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 ×,720)/60Hz, XGA (1024 × 768) /60Hz
- VGA Output1-ch 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720) /60Hz, XGA (1024 × 768)/60Hz
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1KΩ),
- Audio Output1-ch, RCA (2.0 Vp-p, 1KΩ),
- Video Decoding FormatH.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision network camera only)
- Audio Decoding FormatG.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
- Live View Window Division1/4/6/8/9/16/25/32/36/64-window
- Recording Resolution12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous PlaybackMaximum 16-ch
- Decoding Performance20 × 1080p (H.264 & H.265)
- Capacity1TB/2TB/3TB/4TB/5TB/6TB/8TB
- RAIDRAID 0, RAID 1, RAID 5, RAID 6, RAID 10 Support global hot spare disk
- eSATA Interface1 × eSATA interface
- SAS Interface2 × miniSAS interface (Optional)
- Alarm Input/Output16/8,
- Serial Interface1 × RS-232; 1 × RS-485 (full-duplex); 1 × Keyboard
- USB InterfaceRear panel: 2 × USB 3.0
- General
- Power SupplyTwo power supply interfaces. 100 to 240 VAC, 550 W
- Working Temperature0ºC to +50ºC (32ºF to 122ºF)
- Working Humidity10% to 90% RH (no freezing and no condensation)
- Dimensions (W × D × H)487 mm × 560 mm × 133 mm (19.2″ × 22.0″ × 5.2″)
- FanRedundant dual-ball bearing fan. Hot swapping and smart speed adjusting
- Chassis3U chassis of thick galvanized steel
- LanguageEnglish
- Consumption(without HDD)≤ 300 W
- Temperature SensorSupported (detecting temperature inside the chassis and controlling the fan speed)
- Storage Temperature−10º C to +70º C (14º F to 158º F)
- Storage Humidity5% to 90% RH (no freezing and no condensation)
- Guide Rail5External guide rail for installing device into a rack
- Weight (without HDD)≤20 kg (44.09 lb)
- Storage Board
- CPUIntel®, Xeon®, E3-1225
- Network Camera Video Input256-ch
- Incoming/Outgoing Bandwidth768/768 Mbps
- HDMI Output2-ch (independent output),4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 ×,1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 ×,1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 ×,720)/60Hz, XGA (1024 × 768) /60Hz
- VGA Output1-ch 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720) /60Hz, XGA (1024 × 768)/60Hz
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1KΩ),
- Audio Output1-ch, RCA (2.0 Vp-p, 1KΩ),
- Video Decoding FormatH.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision network camera only)
- Audio Decoding FormatG.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
- Live View Window Division1/4/6/8/9/16/25/32/36/64-window
- Recording Resolution12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous PlaybackMaximum 16-ch
- Decoding Performance20 × 1080p (H.264 & H.265)
- Capacity1TB/2TB/3TB/4TB/5TB/6TB/8TB
- RAIDRAID 0, RAID 1, RAID 5, RAID 6, RAID 10 Support global hot spare disk
- ESATA Interface1 × eSATA interface
- SAS Interface2 × miniSAS interface (Optional)
- Alarm Input/Output16/8,
- Serial Interface1 × RS-232; 1 × RS-485 (full-duplex); 1 × Keyboard
- USB InterfaceRear panel: 2 × USB 3.0
- General
- Power SupplyTwo power supply interfaces. 100 to 240 VAC, 550 W
- Working Temperature0ºC to +50ºC (32ºF to 122ºF)
- Working Humidity10% to 90% RH (no freezing and no condensation)
- Dimensions (W × D × H)487 mm × 560 mm × 133 mm (19.2″ × 22.0″ × 5.2″)
- FanRedundant dual-ball bearing fan. Hot swapping and smart speed adjusting
- Chassis3U chassis of thick galvanized steel
- LanguageEnglish
- Consumption(Without HDD)≤ 300 W
- Temperature SensorSupported (detecting temperature inside the chassis and controlling the fan speed)
- Storage Temperature−10º C to +70º C (14º F to 158º F)
- Storage Humidity5% to 90% RH (no freezing and no condensation)
- Guide Rail5External guide rail for installing device into a rack
- Weight (Without HDD)≤20 kg (44.09 lb)
